Russia Iron

Description

A high-grade, smooth, glossy sheet iron, not liable to rust; once made by a process that was long a secret with Russian manufacturers. The sheets were subjected to severe hammering in piles with powdered charcoal between them.

This name is applied to sheet iron of very highly polished or glazed surface also known as planished iron. It is used for protecting the lagging of engines and boilers and for other uses where a non-corroding black iron of finished surface is desired. These sheets are made by piling together about fifty pickled sheets of soft steel with powdered charcoal sprinkled between adjacent sheets. The pile is wrapped in old sheets, wired and heated in a furnace to a cherry-red heat for about 6 hours. Upon cooling, each sheet is swept free of loose charcoal and is then sprayed with steam to form a thin oxide. Again the sheets are piled together, heated and then placed on the hammer table, several in a bundle, and pounded with a steam hammer. This brings about a grinding action which grinds the carbon and oxide on the surface down to a highly polished coating.

From: An Elementary Outline Of Mechanical Processes by George W. Danforth, 1912.

"Mr. Napier observed that the Americans covered their boilers with a kind of Russian iron like copper, and possessing a beautiful skin. Mr. Neilson said he envied the Americans the use of this iron, which they employed in great quantities. Its surface was of a blue colour like zinc. It never rusted, but always remained clean and pretty. It was very expensive, but the manner of its manufacture was still a secret. He had heard of two acute Yankees, living in Siberia for several years, endeavouring to find out the process, but in vain.

"On American Locomotive Engines," Transactions of the Institution of Engineers in Scotland Vol. I. Glasgow: William McKensie, 1858 p125.

Russia iron is used for roasting pans, baking pans, and also for stove pipes, patent elbows, etc. It is a special grade of sheet iron with a medium grey, slightly mottled appearance, due to oxide adhering to the surface so tenaciously that it cannot be cracked off by repeated bendings. It is produced by binding multiple iron sheets (they claim the iron is important) together in "books" with coke or charcoal powder between the sheets. The book was then placed in acid baths, heated, and beaten (hence the term "planished"). The book was then broken apart, the sheets shuffled reassembled with more coke, then the acid bath heat and beating resumed. This process was repeated several times. Afterward the sheets were graded, with the medium grey being the highest quality and used for export. Lesser grades were used as roof iron.

American iron was made in a similar process with rollers replacing the hammering.

Photographs

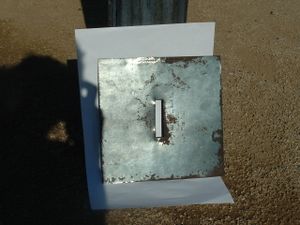

Russia Iron sample from V&T Genoa

Patents

Collected Planished Iron Patents. Compiled by Steve C. PDF icon 2.7mb

Documents Available Online

Imitation Russia Iron From: "Annual of Scientific Discovery or Year Book of Facts in Science and art", 1864. Google Books Icon

"The Manufacture Of Russian Iron" by Dr. John W. Percy. From the Practical Metal-Worker's Assistant, 1872. Compiled by Steve C. PDF icon 8.0mb

Notice of book publication by Dr. John W. Percy Google Books Icon

Phelps, Dodge and Co. advertisement

From the American Railroad Journal, January 4, 1873. Google Books Icon

Description of "Russia Iron" from Knight's American Mechanical Dictionary Vol III 1877. Google Books Icon

Article on Russia Iron.

From Engineering and Mining Journal, September 21 1878. Google Books Icon

"Manufacture Of Russian Sheet Iron" The Engineering and Mining Journal, Dec. 1, 1888 pg 461-462. Google Books Icon

Catechism of the Locomotive. By Matthias N. Forney

General summary of locomotive priciples, includes references to Russia Iron use on locomotive and common boiler jacket construction. Second Edition, 1892.Google Books Icon

Mention of Bruce and Cook of New York, "now about the only importers of Russia Iron in this country."

The Metal Worker, August 8, 1898. Google Books Icon

W. Dewees Wood obituary.

From the American Economist, February 10, 1899.Google Books Icon

Dealings with a sheet mill labor dispute.

From the Metal Worker, July 6, 1901. Google Books Icon

Trade Report from The Metal Worker, Plumber, and Pipe Fitter. July 27, 1907.

Mentioning the difficulty in obtaining Russia Iron. Google Books Icon

The Iron Industry In Russia. Published by the Russian Economic League, 1919. Internet Archive Icon

Index of Russia Iron suppliers.

Metal Worker, Plumber, and Steam Fitter. July 2, 1920. Google Books Icon

Remembering 'Wood's Works' by Jason Togyer. Tube City Almanac (McKeesport, PA), February 23, 2011.
